    Product Showcase

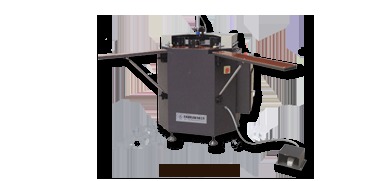

    Aluminum Window Corner Crimping Machine

    Aluminum Window Corner Crimping Machine
    Aluminum Window Corner Crimping Machine
    Send Inquiry
    Product Code : LMB - 120
    Price And Quantity
    • Minimum Order Quantity
    • 1 Unit
    • Price Range
    • 150000.00 - 700000.00 INR
    Product Specifications
    • Product Type
    • Window Crimping Machine
    • General Use
    • For Window Crimping Purpose
    • Material
    • Metal
    • Type
    • Vertical
    • Weight (kg)
    • 400-600 Kilograms (kg)
    • Automatic
    • Yes
    • PLC Control
    • Yes
    • Power Source
    • Electric
    • Voltage
    • 220-240 Volt (v)
    • Motor
    • AC Motor
    • Feature
    • High Precision, High Speed, Low Energy Consumption
    • Color
    • Gray
    Product Description



    WE MAINLY DEAL IN SOUTH INDIA

    • Hydraulic system driving, ensure a stable working
    • Synchronous feeding of the level(left and right side) pushing knives by link with one hydraulic cylinder driving, which avoid the corner deform and enhance the corner connection efficiently
    • Convenient operation and less error in processing
    • Distance of tool knife adjustable, as the screw thread connection, easy working for tools.

    Model
    LMB - 120
    Input power
    1.5kw
    Power supply
    380V/50Hz
    Air pressure
    0.6~0.8MPa
    Rated pressure
    15MPa
    Capability of oil box
    20L
    Profile processing width
    90mm
    Corner combining casing movement journey
    85mm
    The adjustable range of the main location block
    54mm
    Overall dimension
    1000 * 1200 * 12000
    Weight
    300kg
    Trade Information
    • Payment Terms
    • Cash in Advance (CID), Cash Advance (CA)
    • Supply Ability
    • 200 Unit Per Month
    • Delivery Time
    • 2-3 Days
    • Main Domestic Market
    • South India
