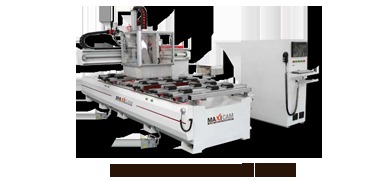

          CNC Router

          CNC Router
          CNC Router
          Send Inquiry
          Product Code : 03
          Price And Quantity
          • Minimum Order Quantity
          • 1 Unit
          • Price Range
          • 300000.00 - 1500000.00 INR
          Product Specifications
          • Material
          • Metal
          • Type
          • Horizontal
          • Weight (kg)
          • 700-1500 Kilograms (kg)
          • Automatic
          • Yes
          • PLC Control
          • Yes
          • Power Source
          • Electric
          • Voltage
          • 220-420 Volt (v)
          • Motor
          • AC Motor
          • Feature
          • High Speed, Low Energy Consumption
          • Color
          • White
          Product Description

          Model

          CD 1434 Series

          Working area

          1400 x 3400 x 350 mm

          Total Size

          4600 x 2500 x 2400 mm

          Transmission

          X,Z ball screw, Y rack pinion

          Table Structure

          Movable vacuum cup

          Spindle Power

          9.0 KW Italian HSD Spindle

          Spindle Speed

          24000 RPM

          Multi-drilling system

          vertical 9+ horizontal 2 +saw 2

          Speed

          MAX travelling speed :50000 mm/min

          MAX working speed :25000 mm/min

          Driver and Motors

          YASKAWA servo drivers and motors from Japan

          Working voltage

          AC380V/3PH/50Hz
          (Option : AC220V/3PH/50Hz )

          Operating system

          Syntec from Taiwan

          Net weight

          3000 KG

          Gross weight

          3200 KG

          Trade Information
          • Payment Terms
          • Cash in Advance (CID), Cash Advance (CA)
          • Supply Ability
          • 200 Unit Per Month
          • Delivery Time
          • 2-3 Days
          • Main Domestic Market
          • South India
