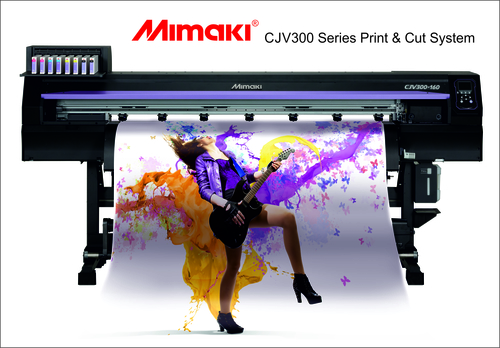

          Mimaki CJV 300

          Mimaki CJV 300
          Mimaki CJV 300
          Send Inquiry
          Product Code : CJV 300 -160
          Brand Name : Mimaki
          Product Description

          Item

          CJV300-160

          Printhead

          On-demand piezo head (2 staggered printheads)

          Print resolution

          360 dpi,540 dpi,720 dpi,1080 dpi and 1440 dpi

          Maximum print width

          1,610 mm (63.3 in)

          Maximum media width

          1,620 mm (63.7 in)

          Ink (Type/Color )

          Eco-solvent ink

          SS21 (C, M, Y, K, Lc, Lm, Lk, Or, W,Si )

          BS3 (C, M, Y, K) *1

          BS4 (C, M, Y, K) *1

          ES3 (C, M, Y, K, Lc, Lm, W)

          Water-based sublimation ink

          Sb53 (Bl, M, Y, K, DK, LBl, Lm)

          Sb54 (Bl, M, Y, K, LBl, Lm

          Ink ( Package size )

          SS21 : 440 mL Ink cartridge/2 L Ink pack * 2

          ES3 : 440 mL Ink cartridge * 2

          BS3 : 600 mL Ink pack/2 L Ink pack * 3

          Sb53 : 440 mL Ink cartridge/2 L Ink pack * 3

          Sb54 : 440 mL Ink cartridge/2 L Ink pack * 3

          Circulation system

          MCT (Mimaki Circulation Technology) Only applies to white and Silver ink

          Media thickness

          1.0 mm or less

          Rolled media weight

          40 kg (88 lb) or less

          Certifications

          VCCI class A, FCC class A, ETL ( UL 60950 -1)

          CE Marking (EMC, Low voltage, and Machinery directive), CB, RoHS

          REACH, and Energy Star / RCM

          Interface

          USB 2.0, LAN for E-mail notification function

          Power supply

          Single-phase (AC 100–120V / AC 220–240V) × 2

          Power consumption

          100V: 2.88KW (1.44KW X 2), 200V: 3.84KW (1.92 KW X 2)

          Operational environment

          Temperature: 20–30 °C (68–86 °F) Humidity: 35–65% Rh (Non condensing)

          Dimensions (W × D × H)

          2,775 × 700 × 1,392 mm

          (109 × 28 × 55 in.)

          Weight

          178 Kg
