          Product Showcase

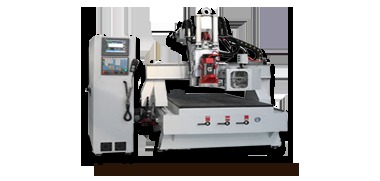

          Router Cutting Machine

          Router Cutting Machine
          Router Cutting Machine
          Send Inquiry
          Product Code : 02
          Price And Quantity
          • Minimum Order Quantity
          • 1 Unit
          • Price Range
          • 300000.00 - 1500000.00 INR
          Product Specifications
          • General Use
          • For Metal and Wood Cutting Purpose
          • Material
          • Stainless Steel
          • Type
          • Vertical
          • Weight (kg)
          • 1000-1500 Kilograms (kg)
          • Automatic
          • Yes
          • PLC Control
          • Yes
          • Power Source
          • Electric
          • Voltage
          • 220-380 Volt (v)
          • Feature
          • High Precision, High Speed, Low Energy Consumption
          • Color
          • White
          Product Description

          WE MAINLY DEAL IN SOUTH INDIA

          With the modern advancement in technology, we are involved in manufacturing and supplying Router Machine. Our offered machine is manufactured using superior grade raw material to ensure efficient functioning. These machines are made available in various sizes and are quality tested on various parameters to ensure flawlessness. Highly applauded in the industrial market, this Router Machine finds application to carve different material like metal, wood and plastic.

          Other information:

          Model

          CD 1224 SE T V

          Working area

          1200 x 2440 x 350 mm

          Table Size

          1220 x 2440 mm

          Z axis

          200

          Transmission

          Rack & Pinion for X & Y axis
          Lead Screw for Z axis

          Table structure

          Vacuum table

          Spindle Power

          9.0 KW Italian HSD Spindle (Option HSD Machining Head 9 drills, 4 milling & 2 saws)

          Spindle speed

          0-24000 RPM

          Speed

          MAX travelling speed: 50000 mm/min

          MAX working speed: 25000 mm/min

          Driver and Motors

          YASKAWA servo drivers and motors from Japan

          Working voltage

          AC380V/3PH/50Hz (Option : AC220V/3PH/60Hz )

          Control system

          SYNTEC Control System

          Net weight

          2000 KG

          Gross weight

          2300 KG


          Trade Information
          • Payment Terms
          • Cash in Advance (CID), Cash Advance (CA)
          • Supply Ability
          • 200 Unit Per Month
          • Delivery Time
          • 2-3 Days
          • Main Domestic Market
          • South India
