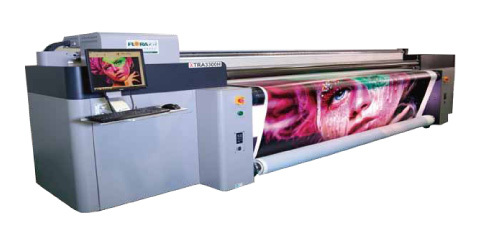

Flora XTRA 3300H

Air Pressure

0.6-0.8Mpa

Brand

Flora

Media Thickness

Up to 51 mm

Model Name/Number

XTRA 2000HUV

Power Requirement

Input voltage: 2.00 to 240V AC, single-phase, 50/60Hz,25A

Print Head

4-12 KM1024I print heads

Print Technology

Piezoelectric inkjet,Grayscale Technology

Temperature

20 to 30 Degree C

Printing Resolution

Up to 726 x 1440 dpi

Weight

1500 kg

Warranty

One year limited warranty

Shipping Dimensions

460 x 115 x 180 cm

Rolling Media Support

Max. print width up to 200cm, diameter 30cm

Rigid Media Support

Standard convey-belt table support rigid materials up to 200cm width

Relative Humidity

35% - 65%, non-condensing

Productivity

100 sqm/hr (Production Mode), 70 sqm/hr (Quality Mode), 50 sqm/hr (Ultra Quality)

Printer Dimensions

430x 100 x 155cm

Power

5000 W

Interfaces

USB 3.0

Ink Types

LED UV inks

Ink Configuration

4,6,8 colors for option,C+M+Y+K,C+M+Y+K+W+V,C+M+Y+K+Lc+Lm

Ink Cartridge Size

1.5 liter

Image Process Software

Photoprint Flora Edition 12, Caldera 11 & Onyx12(Optional)

File Format

Tiff, Jpeg, Postscript, EPS, PDF etc.

Drop Size

6 - 18 picolitre

Curing System

Dual LED UV curing system, separated adjustable power

Color Management

ICC based color, adjustment curves, density adjustment
