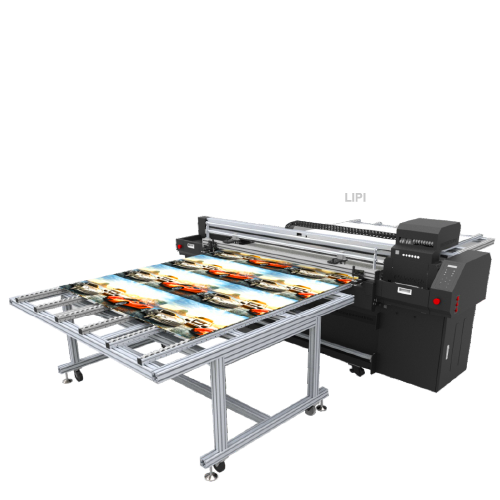

Kenjet UV M-180

1550000.00 - 1750000.00 INR/Unit

Get a Price/Quote

Ask A Question Send Inquiry

Price And Quantity

Payment Terms Cheque, Cash in Advance (CID), Cash on Delivery (COD), Cash Against Delivery (CAD)
Packaging Details Wooden packaging
Main Domestic Market South India

M180 Series	Parameters
Print Head	Drop On Demand Piezoelectric Head
No. of Print Heads	4~6 Heads for T-Tec; 2~3 heads for Ricoh
Productivity	T-Tec	Ricoh
Express	32 sqm/hr	33 sqm/hr
Production	25 sqm/hr	25 sqm/hr
Quality	18 sqm/hr	18 sqm/hr
Good Quality	12 sqm/hr	12 sqm/hr
Resolution & Software
Resolutions	2400dpi Max
Software	Standard (SAI photoprint); Onyx, Caldera, Wasatch as Optional
Media
Media Width	Maximum 1820mm
Roll & Rigid Spec	Roll: Max. Dimension 210mm, 40Kg ; Rigid : 35Kg/sqm
Print Width	1800mm
Feeding & Taking Up System	Auto-Feeding & Taking up System ; Front and Back Extension Table
Ink Type	Eco Solvent / UV Curable
Ink Supply System	1.5L Large Bulk System with Automatic Supply System
Color	Standard CMYK; Lc Lm / Whit Ink Optional
Curing System	Dual LED UV Curing System; Extend Infrared heating and Cooling System
Dimension & Weight
Machine (L x W x H)	3160mm x 1130mm x 1330mm
Package (L x W x H)	3330mm x 950mm x 1600mm
Weight	1000Kg
Connectivity	Hi-Speed USB 3.0
Power	Single Phase, 220VAC‚±10%, 50/60Hz; 5500W (Machine)
Environment	Temp: 15~32⁰C; RH 40~65%;
