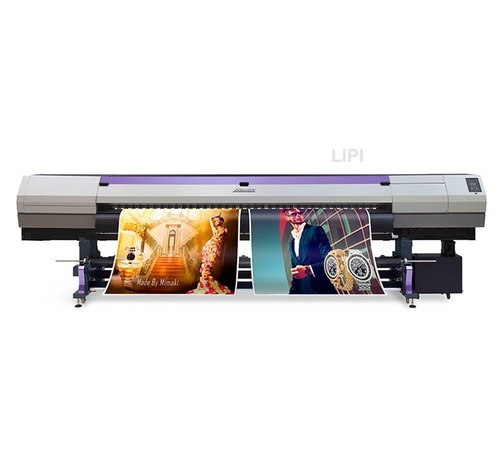

Mimaki SIJ-320UV

Mimaki SIJ-320UV

Product Details:

  • Condition New
  • Dimensions 5,420x 995 x 1,445 Millimeter (mm)
  • Automatic Grade Automatic
  • Maximum Resolution 300 dpi, 600 dpi, 900 dpi
  • Click to view more
X

Price And Quantity

Product Specifications

  • 5,420x 995 x 1,445 Millimeter (mm)
  • Automatic
  • New
  • 300 dpi, 600 dpi, 900 dpi

Trade Information

  • Cheque, Cash in Advance (CID), Cash on Delivery (COD), Cash Against Delivery (CAD)
  • South India

Product Description

Product Name

SIJ-320UV

Head

On demand piezo head (4 heads 2 staggered print)

Print Resolution

300 dpi, 600 dpi, 900 dpi

Droplet size

Minimum 7pl Maximum 36pl

Head gap

4 Type 4 Manual adjustment(from platen 1.7,1.9,2.6,3.3)

Ink type

LED-UV curing ink LUS-120

Ink color

4 Color(CMYK)

Ink packaging

1 liter ink bottle
Ink can be filled up to 3 liters per ink container of the printer.

Maximum print width

3,200mm

Maximum media width

3,250 mm
Using roll holders:[single set] Max.1,620mm [Twin-Roll]Max.1,524mm,2]

Minimum media width

210mm

Media thickness

1.0mm or less

Roll outer diameter

Large drive shafts : 250 mm or less
Small drive shaft with roll holders : 180mm or less

Roll weight

Large drive shafts : 100 kg or less
Small drive shaft with roll holders : 18 kg or less

Dimensions

5,420mm(W) x 995mm(D) x 1,445mm(H)

Packaging Dimensions

5,720mm(W) x 1,140mm(D) x 1,210mm(H)

Machine weight

850Kg

Power supply

AC200-240 ±10%-50/60Hz±1Hz-15Aor less -Not for 100V

Power consumption

3.6kVA or less

Operational Environment

Temperature: 20-30 °C (68-86 °F)-Humidity: 35-65 % Rh (No condensing)
Accuracy assurance temperature:20-25(68-77)
Temperature gradient: ±10(50)/h or less Dust:0.15mg/(comparable office)
