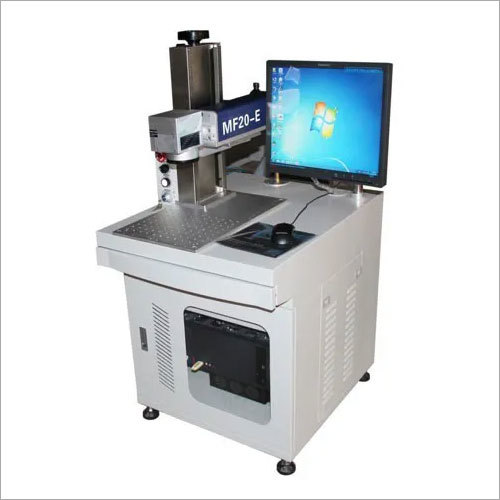

Yueming Laser Marking Machine Mf 20e
Product Details:
- Product Type Marking Machine
- Laser Type Fiber Laser
- Computerized Yes
- Automatic Grade Automatic
- Cooling Mode Air Cooling
- Control System PLC Control
- Voltage 220-380 Volt (v)
- Supply Ability : 500 Unit Per Month
- Click to view more
Price And Quantity
- 400000.00 - 1100000.00 INR
- 1 Unit
Product Specifications
- Fiber Laser
- Automatic
- 220-380 Volt (v)
- PLC Control
- Air Cooling
- Yes
- Marking Machine
Trade Information
- 500 Unit Per Month
- 2-3 Days
- South India
Product Description
Yueming Laser Marking Machine Mf 20e
Laser Marking Machine
Technical specification
| Items : | MF20-E | MF10-E | |
| Laser Source | Wavelength (¼m) | 1.06 | |
| Light Spot Quality (M2) | <1.2 | ||
| Power (W) | 20 | 10 | |
| Impulse Frequency (KHz) | 20-80 | ||
| Cooling Mode | Air cooling | ||
| Work Parameter | Marking Area (mm) | 110-110 | 17-175 |
| Focal Length (mm) | 163 | 254 | |
| Working Distance (mm) | 184 | 288 | |
| Min. Line Width (mm) | 0.02 | ||
| Min. Character (mm) | 0.2 | ||
| Marking Line Speed (mm/s) | 0-7000 | ||
| Graphic Format Supported | BMP, PLT, AI, DXF, and some others. | ||
| Power Supply | Voltage | AC 220V‚±10% | |
| Frequency (Hz) | 50/60 | ||
| Size | Main Machine (mm) | 750”600”1270 | |
| Weight | Main Machine (kg) | 80 (Estimated) | |
| Operating Environment | Environment | Clean, no dust or less dust | |
| Temperature (°C) | 10-35 | ||
| Humidity | 75% (Non-condensate) | ||
| Others | Total Power (kW) | 1 | |
| Safety Protection Level | IP54 | ||
| Laser Safety Level | 4 | ||
